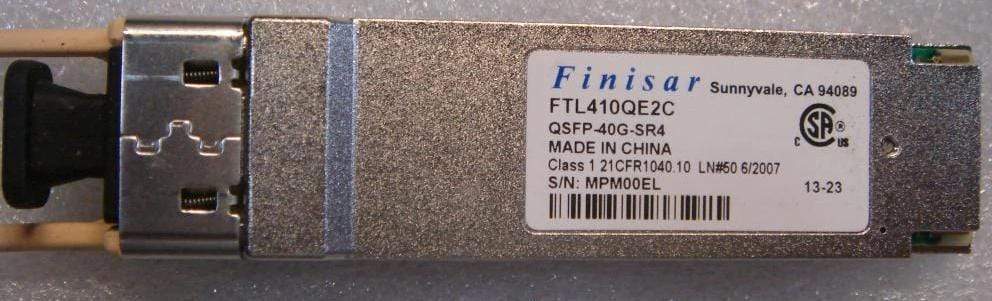

FTL410QE2C Finisar 10.5Gbps 850nm QSFP+ 02310MHR
FTL410QE2C Finisar 10.5Gbps 850nm QSFP+ 02310MHR
Finisar's FTL410QE2C QSFP+ optical transceivers are designed for use in 40 Gigabit per second links over multimode fiber. They are compliant with the QSFP+ MSA and IEEE 802.3ba 40GBASE-SR4. Digital diagnostics functions are available via an I2C interface, as specified by the QSFP+ MSA. The optical transceiver is compliant per the RoHS-6 Directive 2011/65/EU.
- Four-channel full-duplex transceiver module
- Hot-pluggable QSFP+ form factor
- Maximum link length of 100m on OM3 Multimode Fiber (MMF) and 150m on OM4 MMF
- Multirate capability: 1.06Gb/s to 10.5Gb/s per channel
- Unretimed XLPPI electrical interface
- Maximum power dissipation < 1.5W
- Reliable VCSEL array technology
- Commercial temperature range 0°C to 70°C
- Single 1x12 MPO receptacle
- RoHS-6 compliant (lead-free)
| Manufacturer | Finisar Corporation |
| Manufacturer Part Number | FTL410QE2C |
| Description | FIBER OPTIC TRANSCEIVER QSFP |
| Detailed Description | Fiber Optic Transceiver Module Ethernet 10.5Gbps 850nm 3.3V MTP® (MPO) Pluggable, QSFP+ |
| Product Attributes | |
| TYPE | |
| Fiber Optics - Transceiver Modules | |
| Manufacturer | Finisar Corporation |
| Series | - |
| Part Status | Not For New Designs |
| Data Rate | 10.5Gbps |
| Wavelength | 850nm |
| Applications | Ethernet |
| Voltage - Supply | 3.3V |
| Connector Type | MTP® (MPO) |
| Mounting Type | Pluggable, QSFP+ |
- 1 year warranty, 3 years replacement
- 90 day guarantee to meet all new original factory specs fit form and function.
- Welcome inquiry for large quantity with sales@wilwin-ic.com or Skype: chris-wilwin.
- Warranty: 1 year warranty, 30 days returns policy.
- Ship by DHL/UPS/FEDEX/TNT, Samples are available for testing.
- Free shipping for order above $300.00
